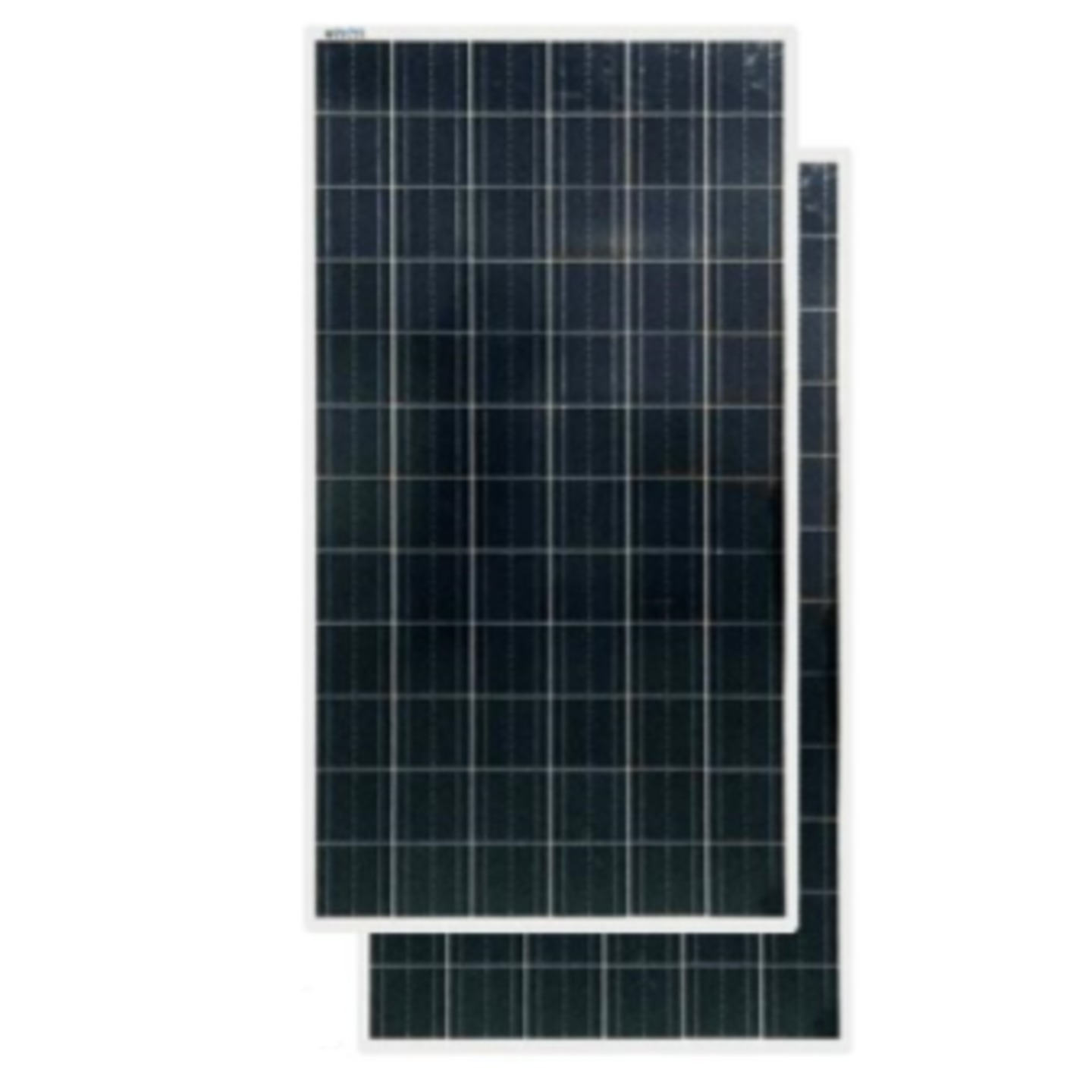

Name: Acutech 100W Polycrystalline Solar Panel
Price: 3290 INR
Availability: InStock

home

Home

about-us

About Us

shipping-returns

Shipping & Returns

contact-us

Contact Us

all-products

All Products

terms-of-service

Terms Of Service

offers

Offers

our-bank-details

Our Bank Details

solar-panel

Solar Panel

solar-led-lantern-1

Solar LED Lantern

solar-cooker

Solar Cooker

solar-inverter

Solar inverter

solar-light

Solar light

solar-battery

Solar Battery

solar-street-light

Solar Street Light

solar-project

Solar Project

connector-cables

Connector & Cables

electrical-components

Electrical Components

others

Others

Footer

Header

Type	                                                                    : AGP12100
Pmax in Watts (Nominal)	                                    : 100
Open Circuit Voltage (Voc) in volts	                    : 22
Short Circuit Current (Isc) in Amp  	                    : 5.92
Voltage in maximum power (VMP) in volts	            : 18
Current at maximum power (Imp) in apps	            : 5.56
Maximum system voltage	                                    : 1000
Solar cell per module (units)	                                    : 36
Width x Length x Thickness (W x L x T) in mm	    : 1016 x 676 x 35
Junction box type	                                                    : 3rail, IP65
Junction box protection rating	                            : 10 A
Weight (Kg)	                                                            : 10
Hole to hole distance (X axis) at Width side (mm)   : 640
Hole to hole distance (Y axis) at Length side (mm) : 500

Acutech 100W Polycrystalline Solar Panel
