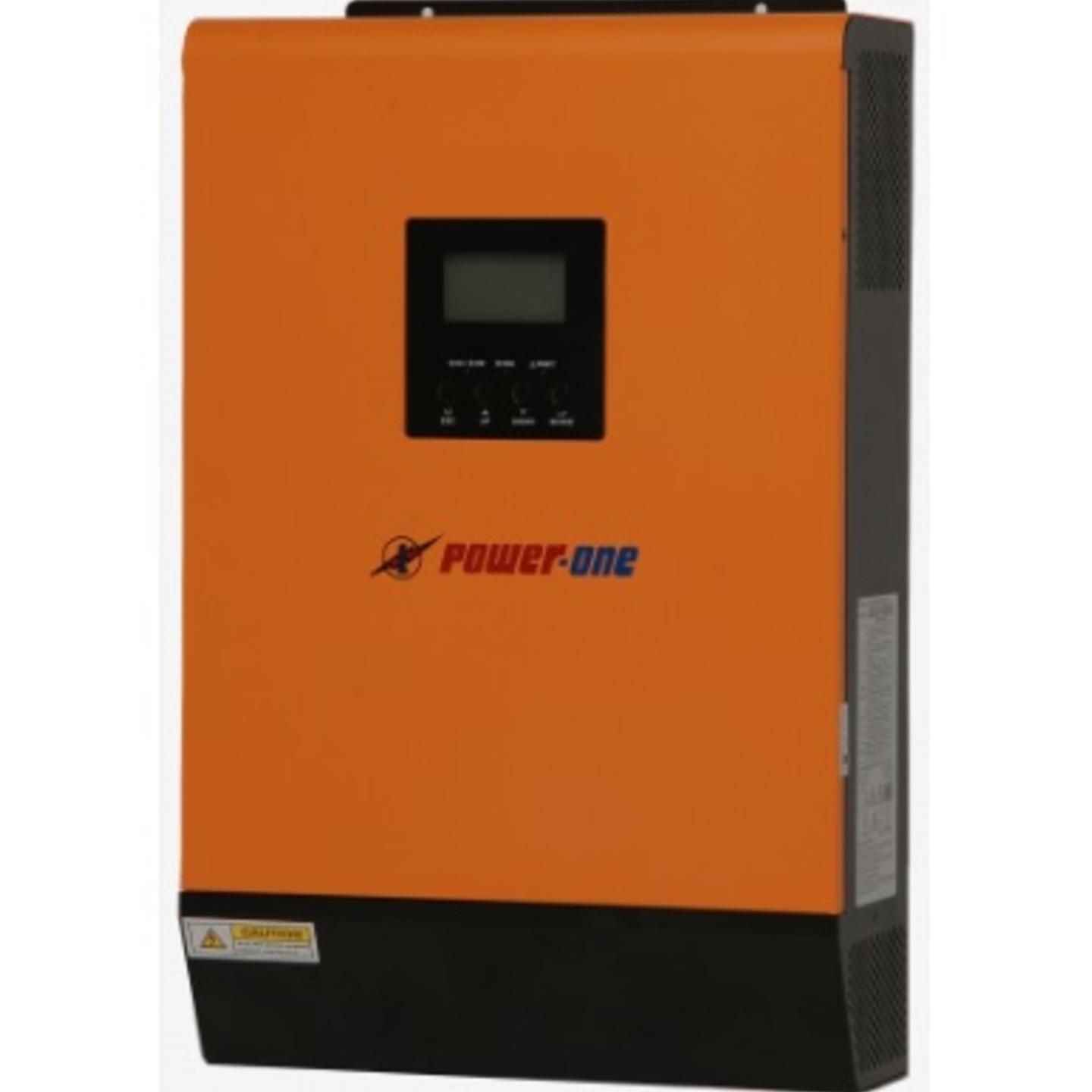

Name: Powerone 005 KW SGTU-105B for Hybrid Single phase Invterters
Price: 84430 INR
Availability: InStock

home

Home

about-us

About Us

shipping-returns

Shipping & Returns

contact-us

Contact Us

all-products

All Products

terms-of-service

Terms Of Service

offers

Offers

our-bank-details

Our Bank Details

solar-panel

Solar Panel

solar-led-lantern-1

Solar LED Lantern

solar-cooker

Solar Cooker

solar-inverter

Solar inverter

solar-light

Solar light

solar-battery

Solar Battery

solar-street-light

Solar Street Light

solar-project

Solar Project

connector-cables

Connector & Cables

electrical-components

Electrical Components

others

Others

Footer

Header

Technical Data
Model No. /Capacity	                                : SGTU-105B 5W
Rated output power	                                : 5000W
PV INPUT DC
MAX. PV POWER	                                        : 6000W
MAX. PV Array Open circuit Voltage 	        : 145 VDC
MPPT Range Operating Voltage	                : 60 VDC~115VDC
Number of MPPT Tracker	                        : 2
Grid Tie Operation
Grid Output (AC)
Nominal Output Voltage	                        : 220/230/240 VAC
Feed in Grid Voltage Range	                        : 195.5~253 VAC OR
                                                                          184 ~ 264.5 VAC (Settable)
Feed in Frequency Range	                        : 47.5 ~ 57.3Hz
Nominal Output Current	                        : 21.7 A
Power Factor	                                                : >0.99
Maximum Conversion Effeciency (DC/AC)	: 90%
Off- Grid, Hybrid Operation
Grid Input
Accetable Input Voltage Range	                : 170-280 VAC
Nominal Frequency	                                : 50 HZ (Auto Sensing)
Maximum AC Input Current	                        : 40A
Battery Mode output (AC)
Nominal Output Voltage	                        : 220/230/240 VAC
Output Waveform	                                        : Pure Sine Wave
Effeciency (DC to AC)	                                : 93%
Battery & Charger
Nominal DC Voltage	                                : 48 VDC
Maximum Charging Current	                        : 180A
Maximum Charging Current (From Grid)	: 60A
Maximum Charging Current (From PV)	: 120A
Genral
Dimention, D X W X H (mm)	                        : 190 x 295 x 483
Net Weight (kgs)	                                        : 16
Interface
Paralle Function (Optional)	                        : Yes
Communication (Optional)	                        : USB or RS 232/Dry-Contact
                                                                          / SNMP/ GPRS/ Modbus
Environment
Humidity                                                         : 0~90% RH (No Condensing)
Operating Temperature	                                : 0 to 50 C

Powerone 005 KW SGTU-105B for Hybrid Single phase Invterters
