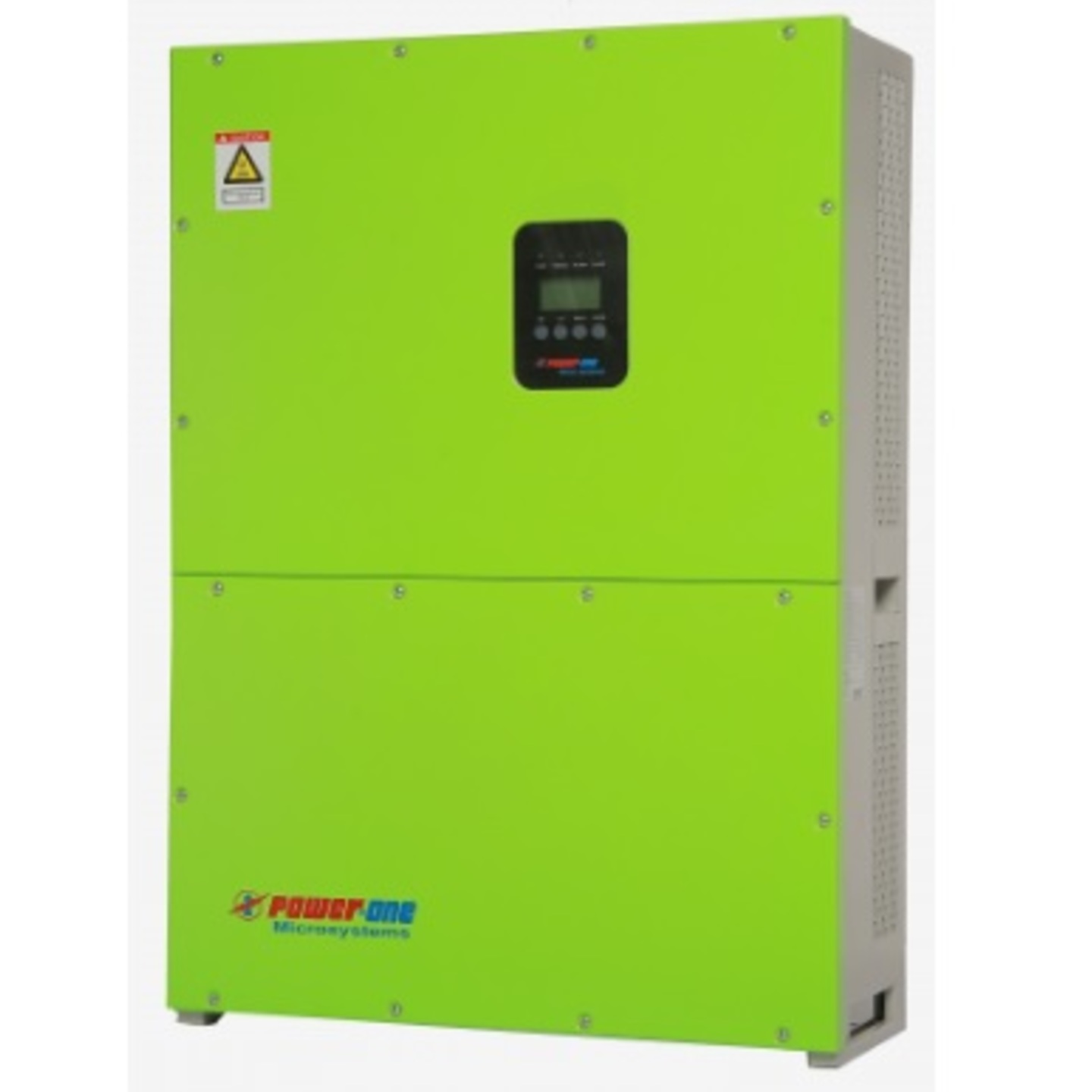

Name: Powerone 005 kW SPCU-IE502 for Off Grid Single phase Invterters
Price: 76245 INR
Availability: InStock

home

Home

about-us

About Us

shipping-returns

Shipping & Returns

contact-us

Contact Us

all-products

All Products

terms-of-service

Terms Of Service

offers

Offers

our-bank-details

Our Bank Details

solar-panel

Solar Panel

solar-led-lantern-1

Solar LED Lantern

solar-cooker

Solar Cooker

solar-inverter

Solar inverter

solar-light

Solar light

solar-battery

Solar Battery

solar-street-light

Solar Street Light

solar-project

Solar Project

connector-cables

Connector & Cables

electrical-components

Electrical Components

others

Others

Footer

Header

Techinical Data
Power plant Rating kW	                                : 5
Input Voltage (nom) Vdc	                        : 96/120
PV Input Voltage (max)	                                : 240
AC Input	                                                        : 230V, 1-ph
Charge controller	                                        : MPPT type
ACCharging current for Battery charging	: 10 A to 100A Depending on the
                                                                          requirement.
Inverter continuous output rating KW  	: 5
Inverter Output voltage Vac                   	: 230V 1 ph /415V, 3-ph
Output frequency	                                        : 50 Hz +/-1Hz
Output voltage regulation	                        : +/- 1% from no load to full load
Overload	                                                : 125% for 60 sec and 150% for 10 s
Output wave shape	                                : Sinusoidal
Load Power factor                                       	: 0.8 Lag/Lead
THD	                                                        : < 3% with load PF from 0.8 Lag to 0.8
                                                                          Lead
Efficiency ( DC - AC )	                                : > 90% at full load
Charge controller Efficiency	                        : Upto 98% depending on capacity
AC Charger Efficiency	                                : Upto 95% depending on capacity
Ambient temperature	                                : 0- 40 deg C without derating, optional
                                                                          upto 55 Deg C
Humidity	                                                        : 0-95% RH
No load Current	                                        : < 2% of the rated capacity
Metering and Instrumenation	                : LCD/LED display - With Grid- AC in,
                                                                          Temperature, Mains Charging On, Mains
                                                                          Charging OffInverter Mode- Battery
                                                                          Voltage, AC Input Voltage, AC Output
                                                                          Voltage, Load wattage, Temperature
Status indications	                                        : System On, Grid Charging, Load On Grid,
                                                                          Solar On
System parameters	                                : All system parameters shall be displayed
                                                                          on LCD display such as battery voltage,
                                                                          output(load) voltage, load current etc
Protection	                                                : Excees Heat, Battery Low, Over Load,
                                                                          Short Circuit
Input connection	                                        : From DCDB, incomer MCB/MCCB
                                                                          provided in inverter cabinet for input
                                                                          isolation
Output connection	                                : To ACDB, outcomer MCB/MCCB provided
                                                                           in inverter cabinet for load isolation
Battery connection	                                : To battery bank through battery Fuse
Type of cooling	                                        : Forced air cooled
Enclosure construction	                                : CRCA metal sheet with powder coated
                                                                          paint shade ( 7032 )
Enclosure protection	                                : IP 21
Mounting	                                                : Floor standing
Cable Entry	                                                : Rear Bottom cable entry
Battery type	                                                : Compatible with all types of Lead acid
                                                                          Flooded/VRLA/SMF OR Ni CD
Data logging	                                                : Optional - Logs AC/DC Kwh, Voltage ,
                                                                          current Parameters through RS-485,
                                                                          Ethernet, GSM based - Detailed list will
                                                                          be provided seperately when required
Potential free contacts	                                : Optional -3 PFC provided for Input on,
                                                                          output on and Trip
Operation Mode	                                        : Stand alone, Off-Grid & Hybrid
Isolation	                                                        : Built in Isolation transformer at Inverter
Operation Mode	                                        : OFF-Grid : Solar -Battery - Grid. We can
                                                                          also supply Grid share type where the
                                                                          priority is Solar-Grid-Battery optionally
IEC Certificates	                                        : 61683:1999 ( Efficiency) 60068-2-1, (2-
                                                                          2,14,30) (Environment )
Dimensions (W / L / D) in mm                        : 353/520/182
Weight                                                             : 23kg
