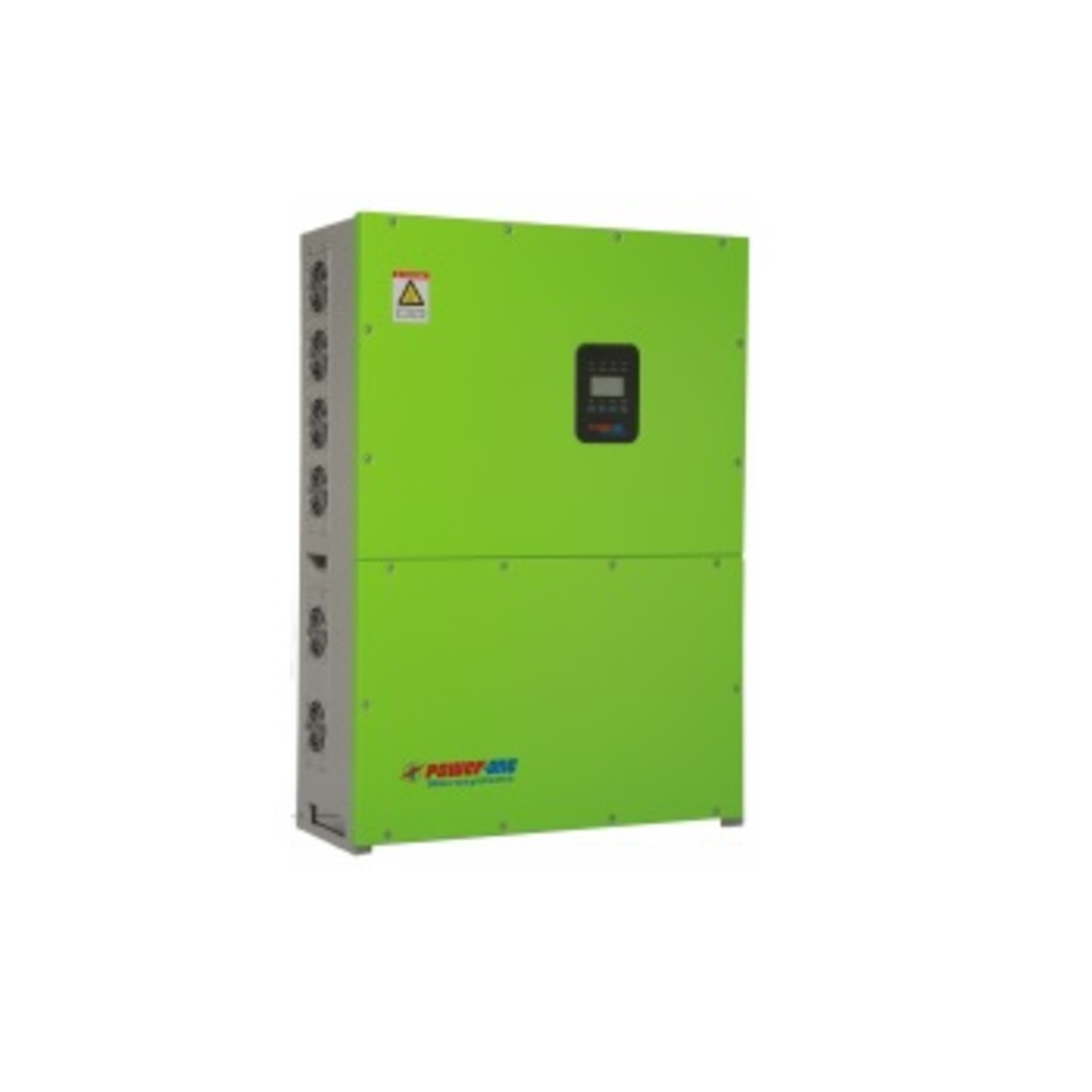

Name: Powerone 020 kW SGTU-203 3P for On Grid Three phase Invterters
Price: 123070 INR
Availability: InStock

home

Home

about-us

About Us

shipping-returns

Shipping & Returns

contact-us

Contact Us

all-products

All Products

terms-of-service

Terms Of Service

offers

Offers

our-bank-details

Our Bank Details

solar-panel

Solar Panel

solar-led-lantern-1

Solar LED Lantern

solar-cooker

Solar Cooker

solar-inverter

Solar inverter

solar-light

Solar light

solar-battery

Solar Battery

solar-street-light

Solar Street Light

solar-project

Solar Project

connector-cables

Connector & Cables

electrical-components

Electrical Components

others

Others

Footer

Header

TECHNICAL DATA
MODEL NO CAPACITY                          : SGTU-203 3P- 20 W

Input (DC)
Max. DC Power (W)                                : 26000 W
Max. DC Voltage (Vdc)                           : 1000vdc /620 VDC
MPPT Tracking Voltage                          : 250 V - 950V
Min. Start-up / Shutdown Voltage(V)     : 200/250 Vdc
Max,. Input Current                                 : 21A X 21A
Stringer per MPPT Tracker                     : 2/2

Output (AC)
Nominal Output Power(W)                     : 22 KW
Rated output voltage		                 : 400Vac
Max. Output range                                 : 280 V-480 AC
Nominal Grid Voltage(V) / Range(V)      : 50(+- 5 Hz) Adjustable
Max. Output Current (A)                          : 32A
Power Factor (%)                                      : 0.8 Leading - 0.8 Lagging
THD (%)                                                     : < 3 %
AC Connection                                         : 3W+N+PE/3W+PE
Efficiency
Max. Efficiency (%)                                   : 98.00
DO switch                                                : Available
Communication interface                       : RS485 Standard, external WIFI or GRPS
Operating Temperature                          : -25 to 60 degree
Night Con.(W) / Noise Level                    :  < 40dB
Protection Class                                       : IP65
Physical Parameters
Dimenstion (WxHxD) mm                         : 553X 713 X 228
Weight (Kg)                                                : 39kg

Safety standard                                       : IEC/EN 62109-1: 2010. IEC/EN 62109.2:2011
                                                                    AND IEC/EN 50178 : 1998
Environment Protection                           : IEC 60068-2-1/2/14/30

Powerone 020 kW SGTU-203 3P for On Grid Three phase Invterters
