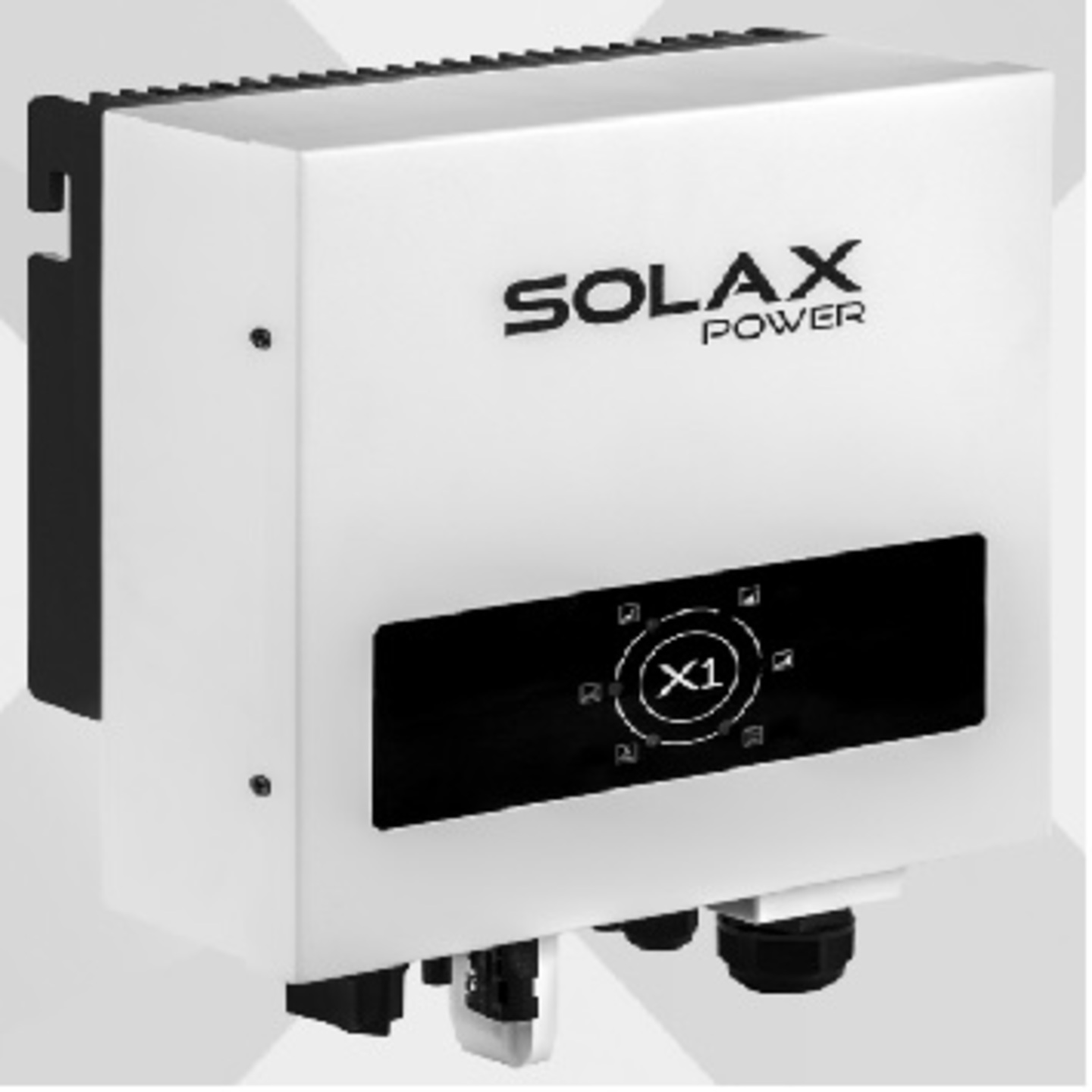

Name: SOLAX X1 MINI-1.5 - 001.5KW Single phase invterters
Price: 21275 INR
Availability: InStock

home

Home

about-us

About Us

shipping-returns

Shipping & Returns

contact-us

Contact Us

all-products

All Products

terms-of-service

Terms Of Service

offers

Offers

our-bank-details

Our Bank Details

solar-panel

Solar Panel

solar-led-lantern-1

Solar LED Lantern

solar-cooker

Solar Cooker

solar-inverter

Solar inverter

solar-light

Solar light

solar-battery

Solar Battery

solar-street-light

Solar Street Light

solar-project

Solar Project

connector-cables

Connector & Cables

electrical-components

Electrical Components

others

Others

Footer

Header

TECHNICAL DATA
MODEL NO CAPACITY                                     : X1 MINI-1.5

INPUT (DC)
Max.recommended DC power [W]                  : 1650
Max. input DC voltage [V]                                 : 400
Max. input current [A]                                        : 10
MPPT voltage range [V]                                    : 55/380
Start output DC voltage [V]                               : 70
Number of MPP tracker                                    : 1/1
/strings per MPP tracker

Output (AC)
AC norminal power [VA]                                     : 1500
Max. AC power [VA]                                            : 1500
Norminal AC voltage; range  [V]                         : 220/230/240; 180~280
AC grid frequency; range) [Hz]                           : 50/60;+-5
Max. AC current [A]                                              : 7.5
Power factor (full load)                                         : 0.8leading-0.8lagging
Total harmonic distortion(THD) [%]                      : <1.5

Efficiency
MPPT eﬃciency [%]                                              : 99.9
Euro-eﬃciency [%                                                 : 96
Max. eﬃciency [%]                                                : 97.1

POWER CONSUMPTION
Standby comsuption power[W]                           : <.5

SAFETY & PROTECTION
Over voltage protection                                       : YES
Over current protection                                       : YES
DC isolation impedance monitoring                   : YES
Ground fault current monitoring                         :  YES
DC injection monitoring                                       : YES
RCD protection                                                     : YES
 Safety                                                                   : EN62109-1/-2
 EMS standard                                                      : EN61000-6-2;EN61000-6-2;
                                                                                EN61000-3-2;EN61000-3-3;
 Certification                                                          : G83/2;EN50438

ENVIRONMENT LIMIT                                          :

Protection class                                                    : IP65
Operating temperature range [ C]                       :  -20~+60(derating at 45)
Humidity [%]                                                          : 0-95
Altitude[m]                                                             : 2000
Storage temperature [ C]                                      : -20~+60
Noise emission(typical)[dB]                                  : <25

General Data
Dimenstion (WxHxD) mm                                      : 248*350*124
Weight (Kg)                                                             : 7
Topology                                                                 : Transformerless
Communication                                                       : RS485 /DRM / WIFI(optional) /
                                                                                   DRM / USB
Display                                                                    : 6 LED
Warranty [year]                                                         : 5/10 (dependent on territory)
Cooling concept                                                     : Natural


SOLAX X1 MINI-1.5 - 001.5KW Single phase invterters
