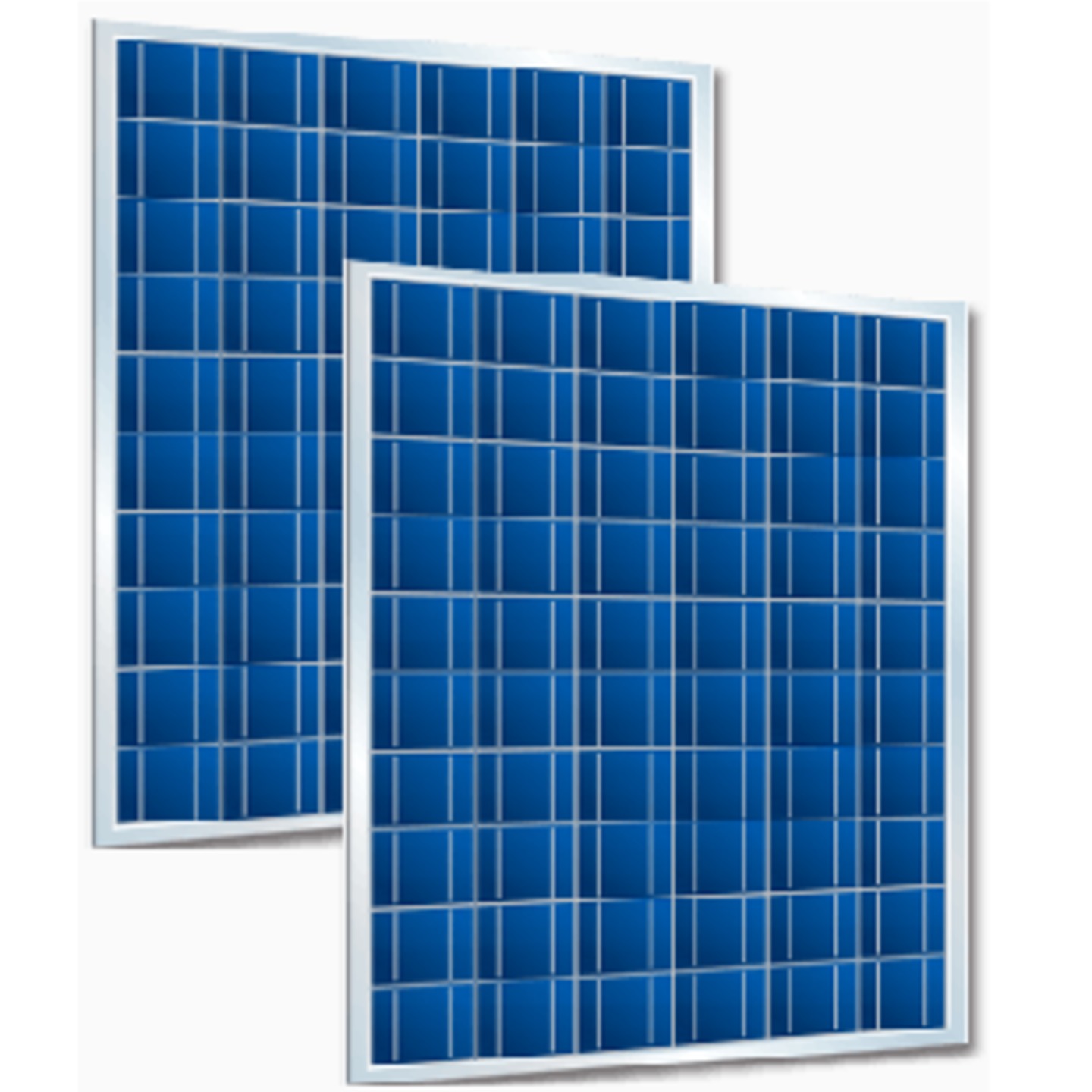

Name: APS 250W poly crystalline silicon photovoltaic module Solar Panel
Price: 7475 INR
Availability: InStock

home

Home

about-us

About Us

shipping-returns

Shipping & Returns

contact-us

Contact Us

all-products

All Products

terms-of-service

Terms Of Service

offers

Offers

our-bank-details

Our Bank Details

solar-panel

Solar Panel

solar-led-lantern-1

Solar LED Lantern

solar-cooker

Solar Cooker

solar-inverter

Solar inverter

solar-light

Solar light

solar-battery

Solar Battery

solar-street-light

Solar Street Light

solar-project

Solar Project

connector-cables

Connector & Cables

electrical-components

Electrical Components

others

Others

Footer

Header

MODULE                                                     : APSP6-250 / 60
Rated Power (Pmax)                                   : 250W
Tolerance                                                    : 0~+3%
Rated current (Imp)                                     : 8.24A
Rated Voltage (Vmp)                                   : 30.4V
Short Circuit Current (Isc)                           : 8.98A
Open Circuit voltage (Voc)                         : 37.35V
Module Efficiency (%)                                  : 15.4
NOCT ( Nominal Operation Temperature) : 45º±2ºC
PARAMETER                                                : VALUES
Operating temperature                               : From -40º to +85º
Typical Application                                      : 24 V DC
Hail Diameter @ 80km/h                             : Up to 25mm
Maximum Series Fuse Rating                     : 15
IEC Application Class (IEC 61215)               : A
Fire Rating (UL 1703)                                    : C
Maximum System Voltage                           : 1000 V DC (IEC 61215) 600 V (UL 1703)
Solar Cells                                                     : Mono crystal Si 156 mm × 156 mm
                                                                         (6.14in.x6.14in.) No:- 60 cells (6x10)
Dimension                                                     : Length: 1640mm, Width: 992 mm,
                                                                         Thickness: 35mm
Front Glass                                                    : 3.2 mm High transparency
Frame                                                            : Anodized aluminium alloy
Junction Box                                                 : IP65 / IP67
Connectors                                                   : MC4 Connectors
Weight                                                           : 17.4kg


APS 250W poly crystalline silicon photovoltaic module Solar Panel
