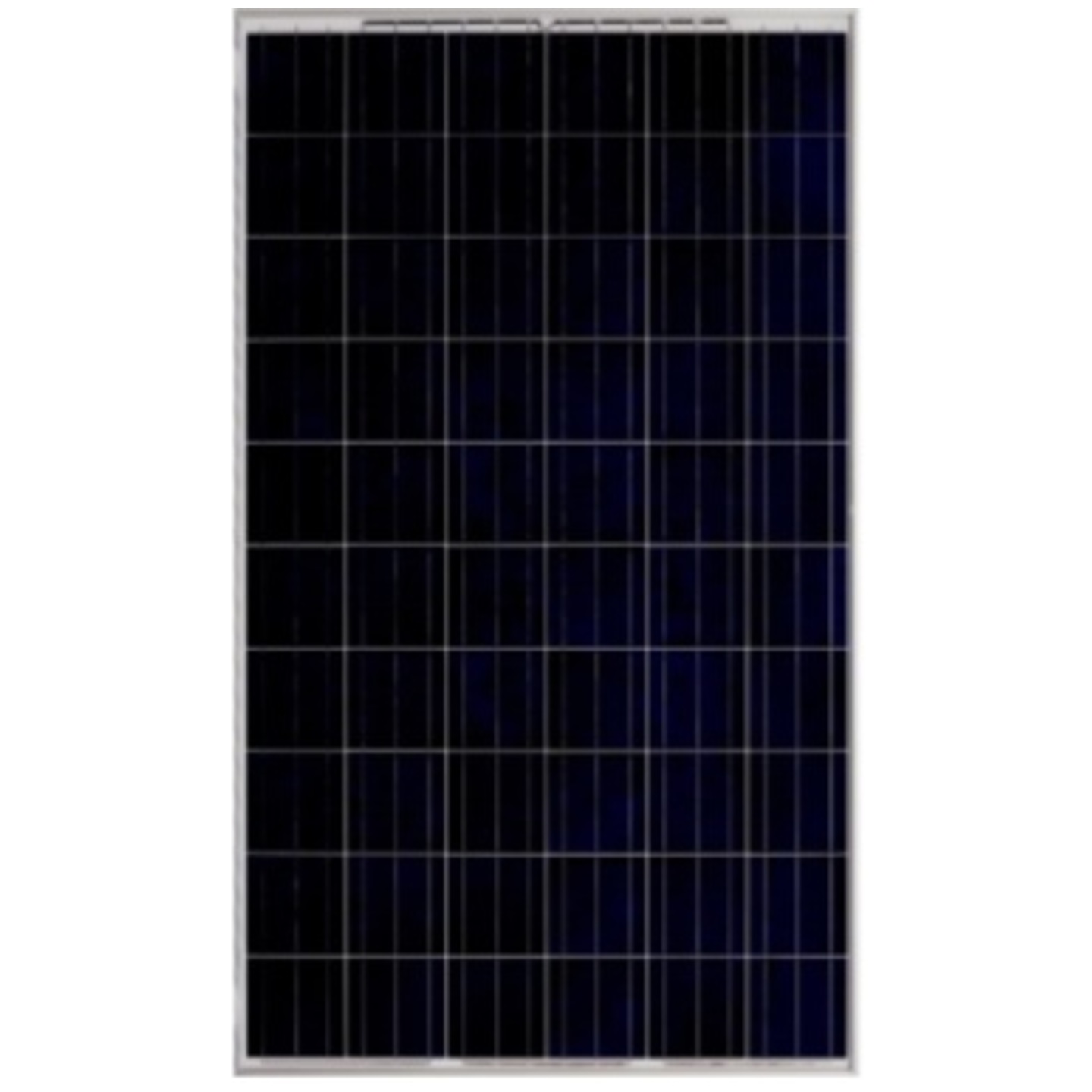

Name: DHOOP 250W multicrystalline silicon Solar Panel
Price: 6688 INR
Availability: InStock

home

Home

about-us

About Us

shipping-returns

Shipping & Returns

contact-us

Contact Us

all-products

All Products

terms-of-service

Terms Of Service

offers

Offers

our-bank-details

Our Bank Details

solar-panel

Solar Panel

solar-led-lantern-1

Solar LED Lantern

solar-cooker

Solar Cooker

solar-inverter

Solar inverter

solar-light

Solar light

solar-battery

Solar Battery

solar-street-light

Solar Street Light

solar-project

Solar Project

connector-cables

Connector & Cables

electrical-components

Electrical Components

others

Others

Footer

Header

Type of Product                                             : Polycrystalline Solar Panel
Nominal Power - Pmax ( Watts )                   : 250
Voltage at maximum Power - Vmp ( Volts ) : 30.85
Current at maximum Power - Imp ( Amps ) : 8.11
Open circuit Voltage - Voc ( Volts )              : 37.12
Short Circuit Current - Isc ( Amps )               : 8.7
Temperature coefficient - Voc                      : -0.33 V / ºC
Temperature coefficient - Isc                        : +0.06 mA / ºC
Maximum System Voltage                            : 1000 VDC
Max. series fuse rating                                  : 20A
Max. static load, front (e.g. snow and wind) : 5400Pa
Max. hailstone impact (diameter / velocity)  : 25mm / 23m/s
Solar Cells per Modules - Unit                      : 60(10x6 Matrix)
Parent Solar Cell Size - mm                          : 156 mm Multi Crystalline
Mechanical Details
Dimensions - ( L x W x T ) mm                      ; 1662mm / 992mm / 40mm
Weight - Kgs                                                  : 19
Plug connector                                              : MC4 or compatable
