Type of Product                                             : Polycrystalline Solar Panel
Nominal Power - Pmax ( Watts )                   : 300
Voltage at maximum Power - Vmp ( Volts ) : 36.8
Current at maximum Power - Imp ( Amps ) : 8.16
Open circuit Voltage - Voc ( Volts )              : 43.99
Short Circuit Current - Isc ( Amps )               : 8.69
Temperature coefficient - Voc                      : -0.33 V / ºC
Temperature coefficient - Isc                        : +0.06 mA / ºC
Maximum System Voltage                            : 1000 VDC
Max. series fuse rating                                  : 20A
Max. static load, front (e.g. snow and wind) : 5400Pa
Max. hailstone impact (diameter / velocity)  : 25mm / 23m/s
Solar Cells per Modules - Unit                      : 72(12x6 Matrix)
Parent Solar Cell Size - mm                          : 156 mm Multi Crystalline
Mechanical Details
Dimensions - ( L x W x T ) mm                      ; 1962mm / 992mm / 40mm
Weight - Kgs                                                  : 23
Plug connector                                              : MC4 or compatable

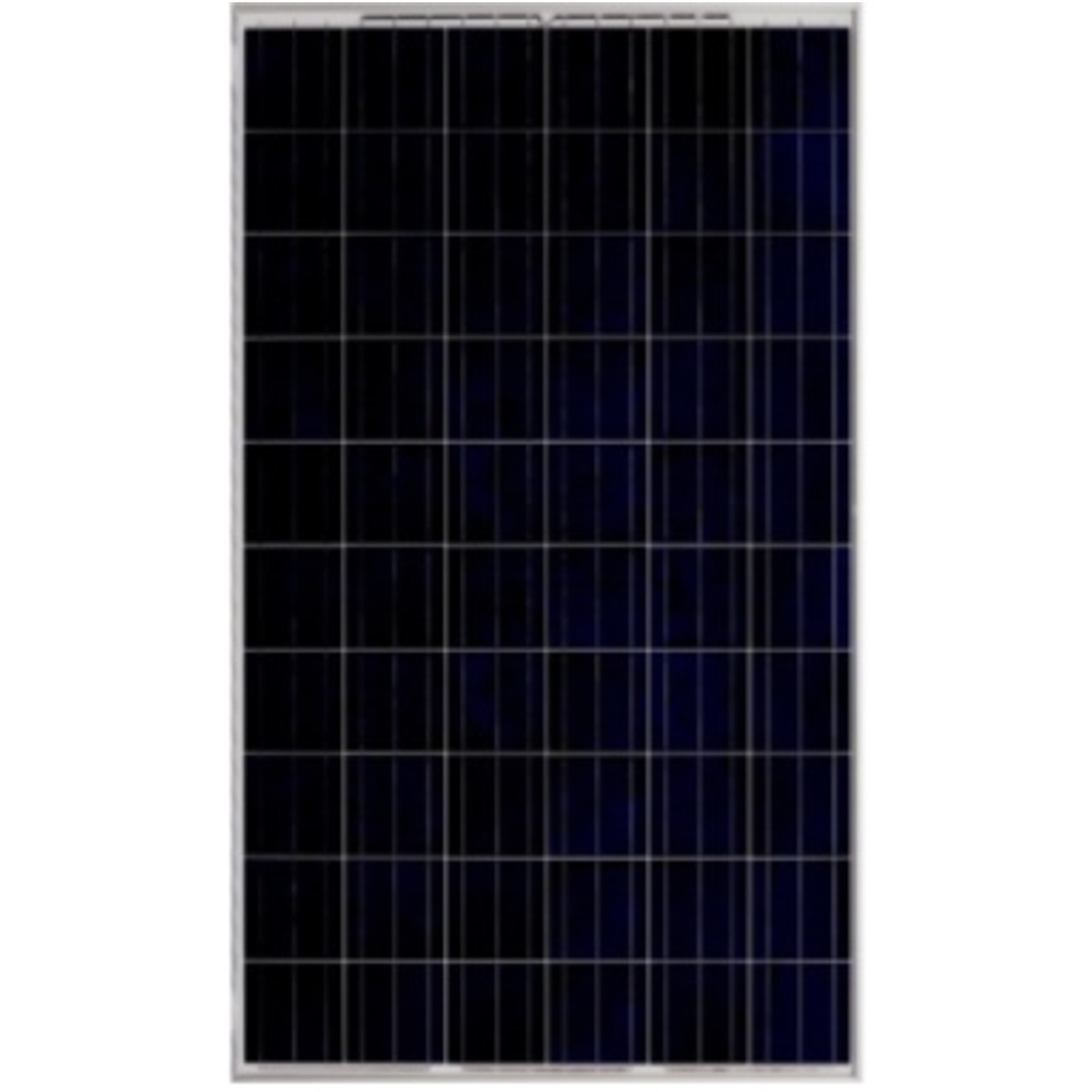

DHOOP 300W multicrystalline silicon Solar Panel

DHOOP 300W Polycrystalline Solar Panel
